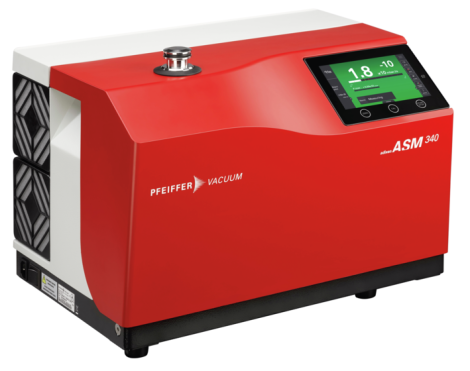

ASM 340 helium leak detector

Pfeiffer Vacuum ASM 340 Multipurpose helium leak detector provides high performance, reliability and easy operation.  The ASM 340 is a universal leak detector with a rugged design that can be used in vacuum or sniffing test modes. ASM 340 measures minimal detectable leak rate for helium of 5 · 10^-10 in sniffing mode and  5 · 10^-13 in vacuum mode.

• Powerful rotary vane pump with 15 m³/h backing pump capacity or oil-free dry pump
• 2.5 l/s helium pumping speed
• 200/240 V operating voltage, European power cable
• Modern, bright and detachable color touch screen
• Large internal memory and data output via USB port on the display
• Fully configurable I/O interface (37 pins D-Sub) to fit to customer needs
• Ethernet Communication
• Wired or wireless remote control and sniffer probes available as accessories
